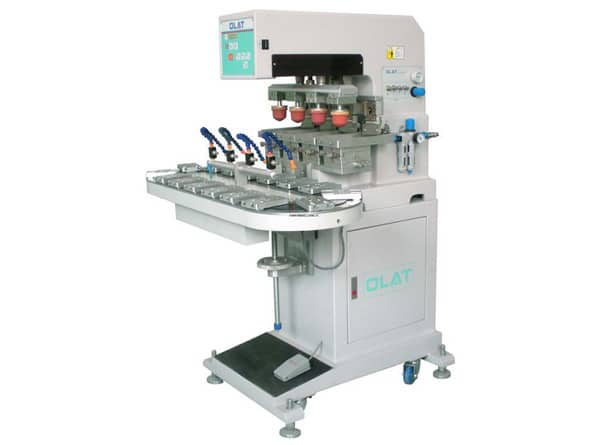

OP-174C Four Colors Open System Pad Printer with Conveyor

 OP-174C  Four Colors Open System Pad Printer with Conveyor

Specifications

Standard Plate Size：                           150*100mm
Max Plate Size：                                    150*100mm
Max Pad Pressure：                                    180par
Max Printing Speed：                             1500circles/hour
Standard Workpiece thickness：                     190mm
Voltage/power：                                             220/50HZ/50W
Air Pressure Requirement：                              6-7 bar

Features :
1,Automated CNC Processor and provide customers the high quality products
2,Using the German FESTO and Japan SMC pneumatic  parts
3,First printing machine with color match lights over the world, which can confirm the color according to the samples
4,Precise CNC fine adjustment of the pad; solving the problems of pad deformation
machine weight：185 kg
machine size：950*1080*1430(LxWxHmm)
