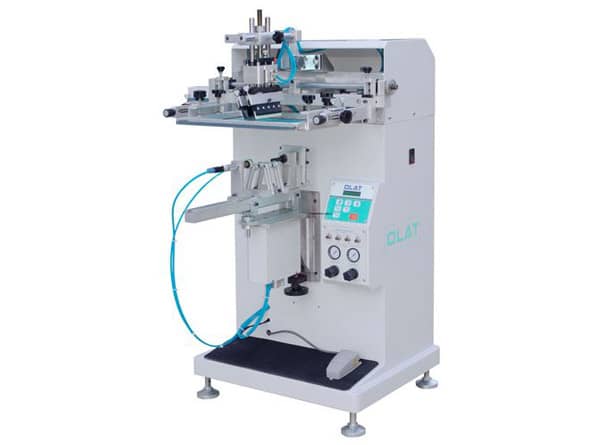

OS-60RA Screen Printer for Curved Surface

OS-60RA Screen Printer for Curved Surface

Specification

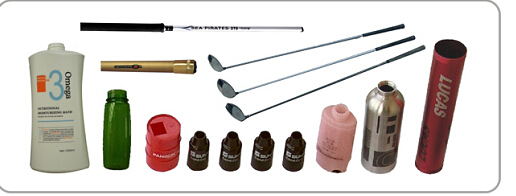

Piece Shape：                                 Cylindrical/oval
Max Printing Diameter：                 Φ60mm
Max Screen Frame Size：                 480*240mm
Max Printing Size：                                190*200mm
Max Speed：                                           2000 circles/hour
Voltage/power：                                   220V/50HZ/50W
Air Pressure ：                                         5-6bar
Machine Weight：                                   114 kg
Machine Size：                                 880*890*1300(LxWxHmm)

 Features :
1,Automated CNC Processor and provide customers the high quality products
2,Using the German FESTO and Japan SMC pneumatic  parts
3,First printing machine with color match lights over the world, which can confirm the color according to the samples
4,Precise CNC fine adjustment of the pad; solving the problems of pad deformation
