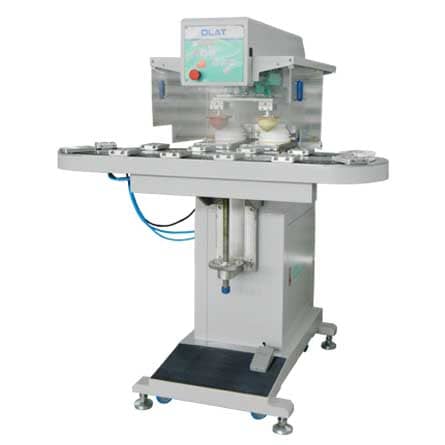

OP-222CE 2 Colors Ink-cup Pad Printer with Conveyor

OP-222CE 2 Colors Ink-cup Pad Printer with Conveyor

Specification
Ink-cup  Diameter：                Φ130mm
 Plate size：                             300*150mm
Max Pad Pressure：                  300par
Max Speed：                                 1200circles/hour
Piece Thickness：                            250mm
Voltage/power：                             220/50HZ/50W
Air Pressure Requirement：               6-7 bar
Machine Weight：                                   200 kg
Machine Size：                                 1150*1300*1550(LxWxHmm)

Features :
1,Automated CNC Processor and provide customers the high quality products
2,Using the German FESTO and Japan SMC pneumatic  parts
3,First printing machine with color match lights over the world, which can confirm the color according to the samples
4,Precise CNC fine adjustment of the pad; solving the problems of pad deformation
