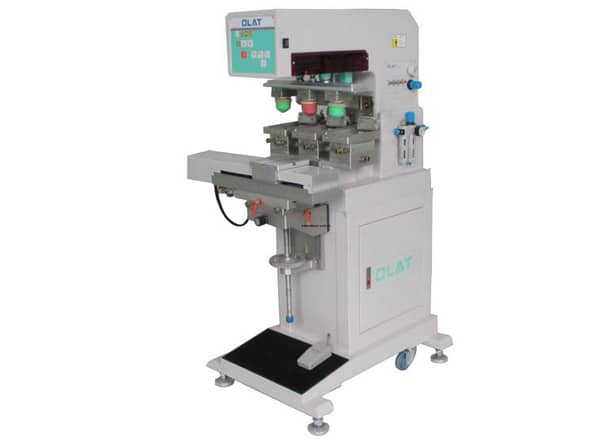

OP-173S Three Colors Open System Pad Printer with Shuttle

OP-173S Three Colors Open System Pad Printer with Shuttle

Specifications

Standard Plate Size：                       150*100mm
Max Plate Size：                                 150*100mm
Max Pad Pressure：                             180par
Max Printing Speed：                                 900circles/hour
Standard Workpiece Thickness：          190mm
Voltage/power：                                          220/50HZ/50W
Air Pressure Requirement：                          6-7 bar
Machine Weight：                                             152 kg
Machine Size：                                             800*760*1450(LxWxHmm)

Features :
1,Automated CNC Processor and provide customers the high quality products
2,Using the German FESTO and Japan SMC pneumatic  parts
3,First printing machine with color match lights over the world, which can confirm the color according to the samples
4,Precise CNC fine adjustment of the pad; solving the problems of pad deformation
